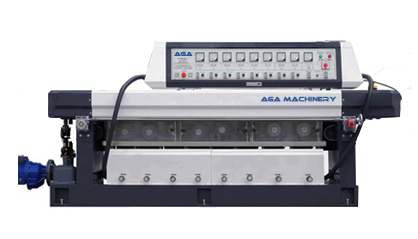

Flat Edge Polisher Back Splash Machine
Polish machine for flat edge back splash on granite marble quartz

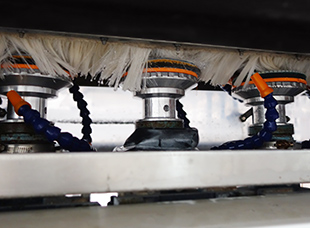

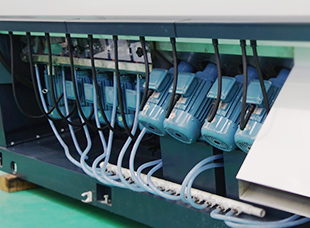

The machine with multi heads for polishing granite and marble on the back splash counter tops, sills, etc.

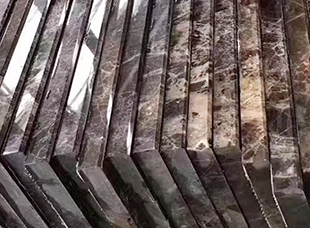

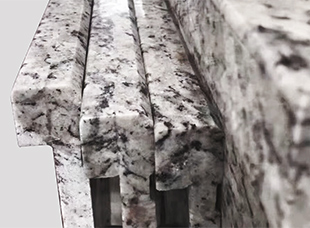

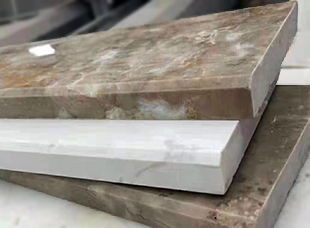

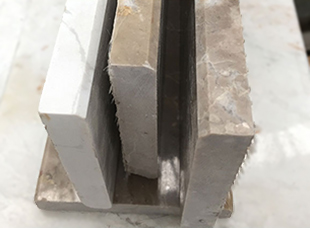

Able to do both the flat polish and bevel polish on the stone edges.

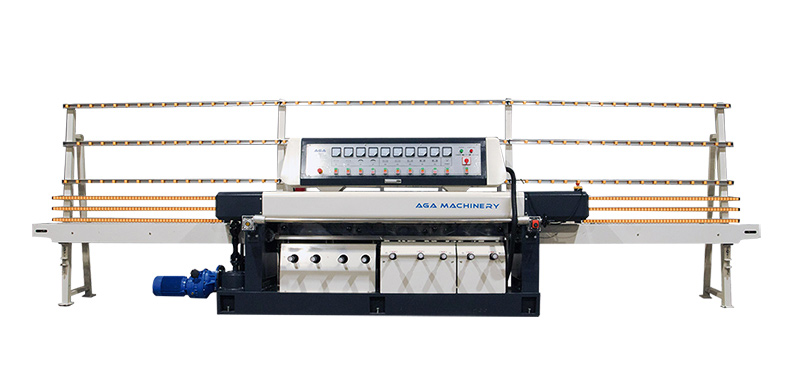

Inlet and outlet with rollers and clamps for long pieces.

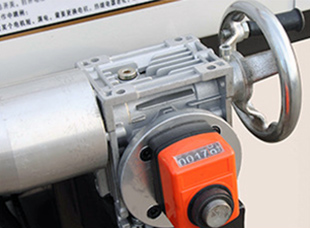

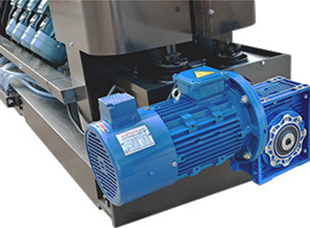

Variable speed drive motor with speed control for belt.
Cast iron bridge structure for stable performance and long life.

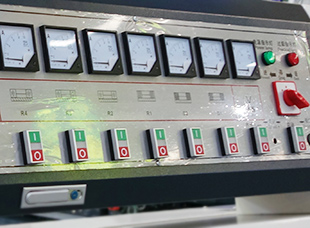

Automatic running and very easy to operate.
SPECIFICATION
Polish head 9 Total
Work thick 10 - 60 mm 2.36" Max
Work length 100 - 3000 mm 10' Max
Production rate 155 inch/min

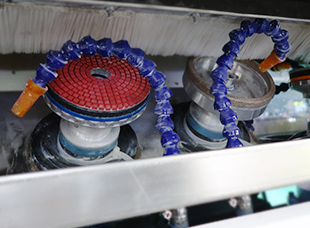

Pad size Φ127 mm Φ5"
Belt speed 0.7 – 5 m/min 27 – 197 inch/min
Min. stone size 100 × 100 mm 4" × 4"
Total power 20.5 Kw 28 HP
Water consumption 110 L/min 30 gal/min
Overall size 9.2 ×1.5 × 3m 30' x 5' x 10' (L/W/H)
