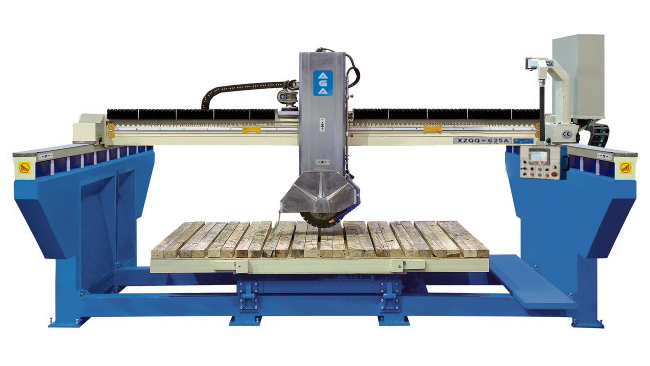

Granite Bridge Saw

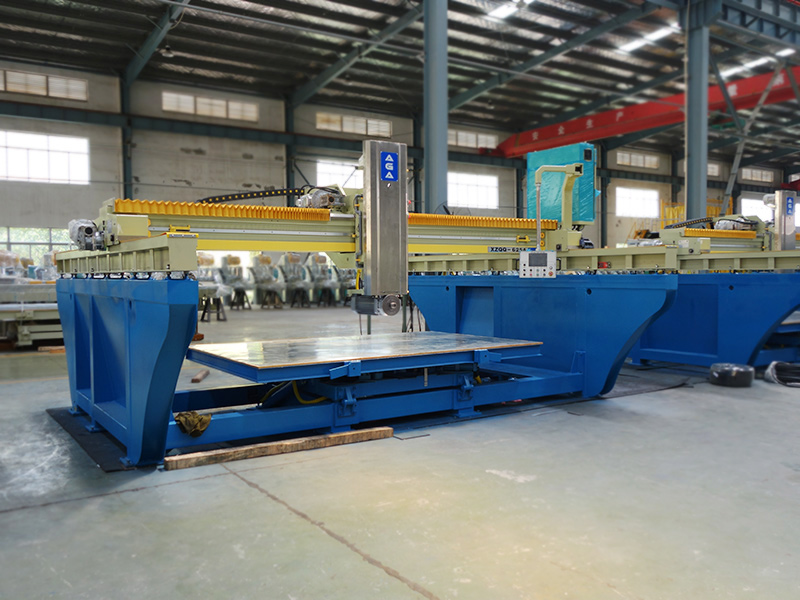

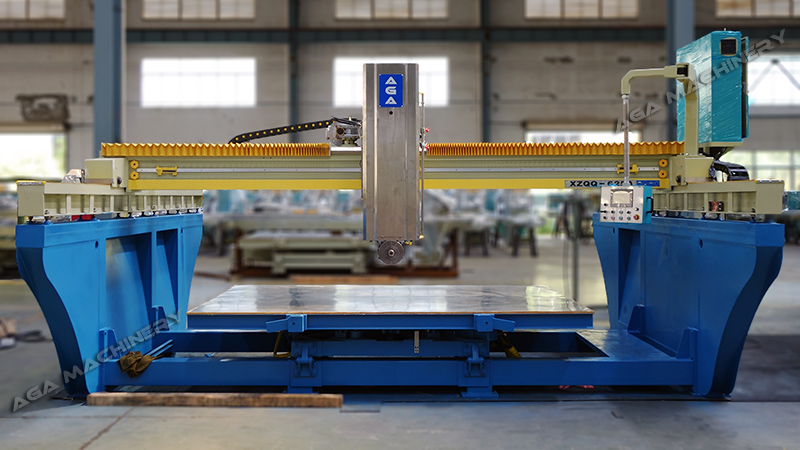

Bridge Saw Machine cutting granite marble quartz natural stones monoblock
A robust bridge saw monoblock applicable for cutting and fabricating slab, counter tops, vanity top, etc.
USA Standard Made with a powerful motor 20 HP and able to cut 3400 mm length, 2000 mm width and 175 mm thick (134”×78”×6.9” L / W / H).
ADVANTAGES

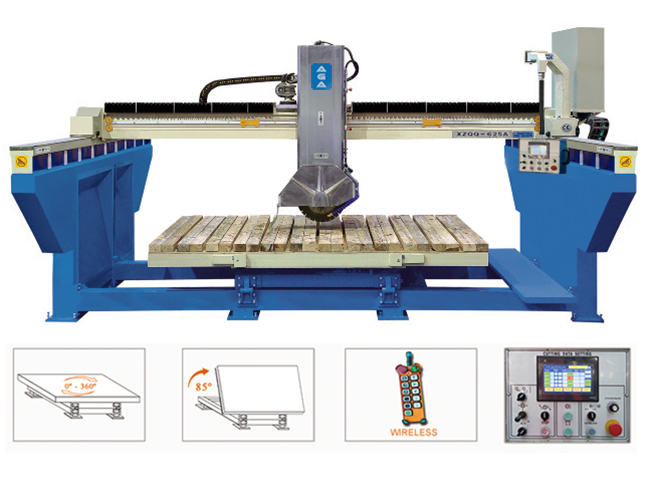

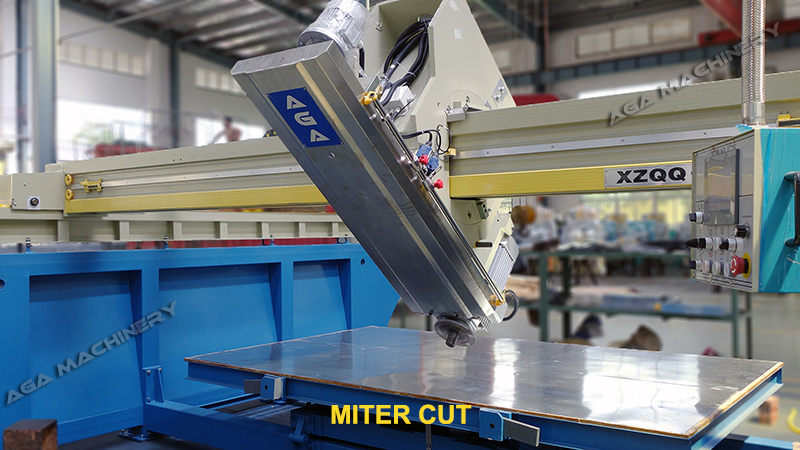

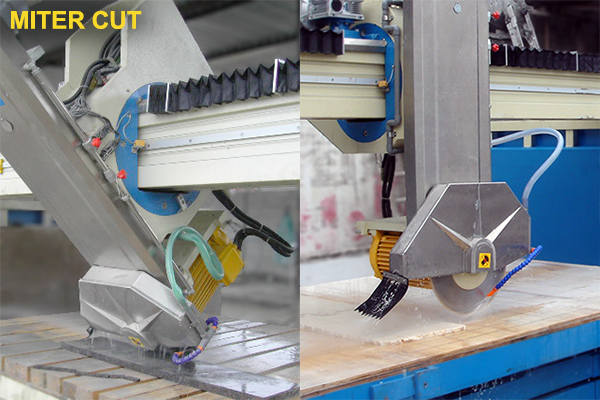

- Blade travels on the bridge and it also provides automatic power tilting 0° - 45° for Miter cuts.

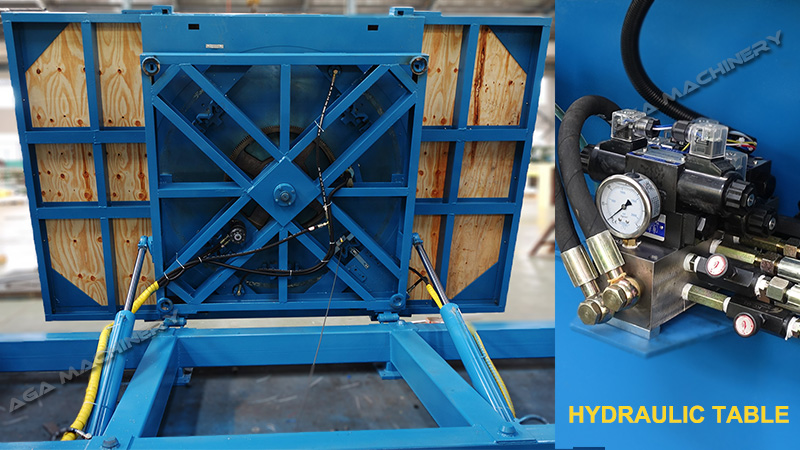

- Table turns 0° - 360° automatically stopped any position and also tilts 0° - 85° Hydraulic for easy load of material.

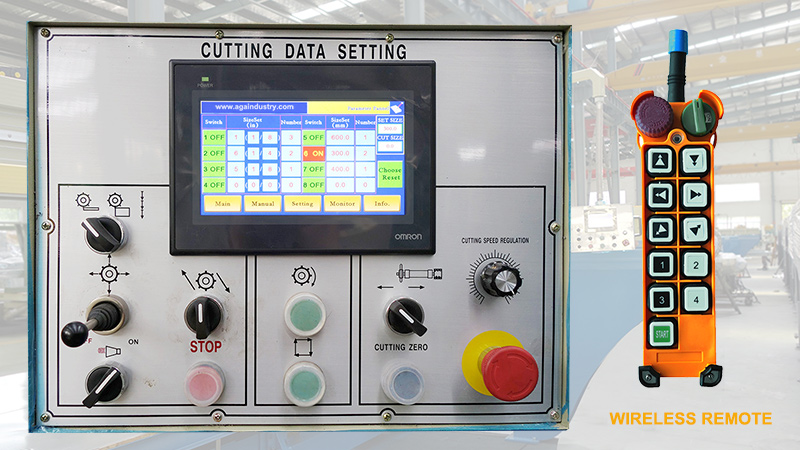

- This monoblock bridge saw machine is computer control and with color Display Touch Screen.
- Able to do multiple programs for up to 99 repeat cuts automatically and also capable of manual operation.
- Wireless remote provides ease control of the bridge saw.
- Laser guide and sensors give precision cuts every time.
- Automatic water control saving every drop.
- Movements of bridge rails are in covered oil bath ensuring smooth movements and reduced wear.
- Main structures are made of very strong cast iron for stable running and stainless steel for protection.

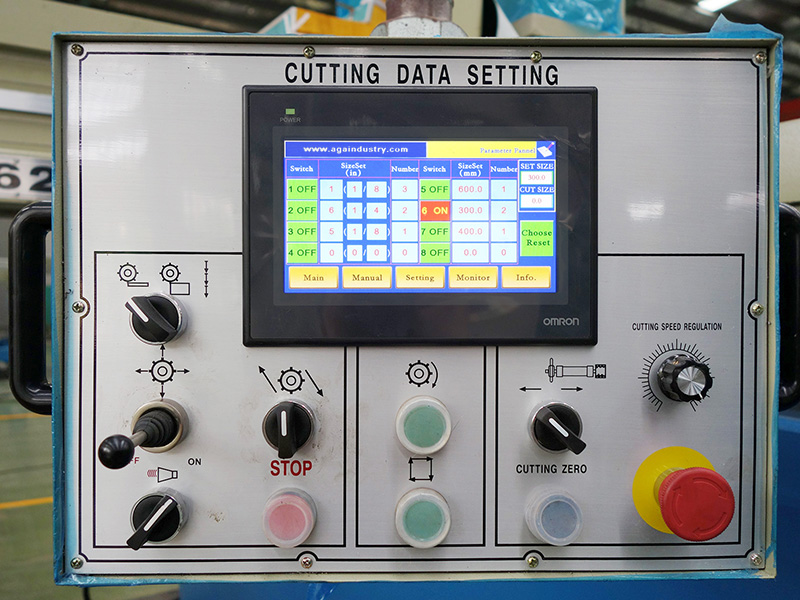

- All functions are operated on the control panel that make it very user friendly.
- Operating Language in English and Input Sizes unit in Inch or mm.
SPECIFICATION
Blade size 16" - 25" Ø400 - Ø625 mm
Cut length 134" 3400 mm
Cut width 78" 2000 mm
Cut thick 6.9" 175 mm
Blade tilt 0° - 45° for Miter Cut Automatic
Table rotate 0° - 360° Stopping @ Any Position Automatic
Table tilt Powered 0° - 85° Hydraulic
Spindle motor 20HP 15 Kw Direct Drive
Size (L/W/H) 20' × 16' × 9.9' 6 × 5 × 3 m
Weight 16,000 lbs 7200 Kg
FOR USA & CANADA CUSTOMERS:
1. Free delivery, Install & Train.

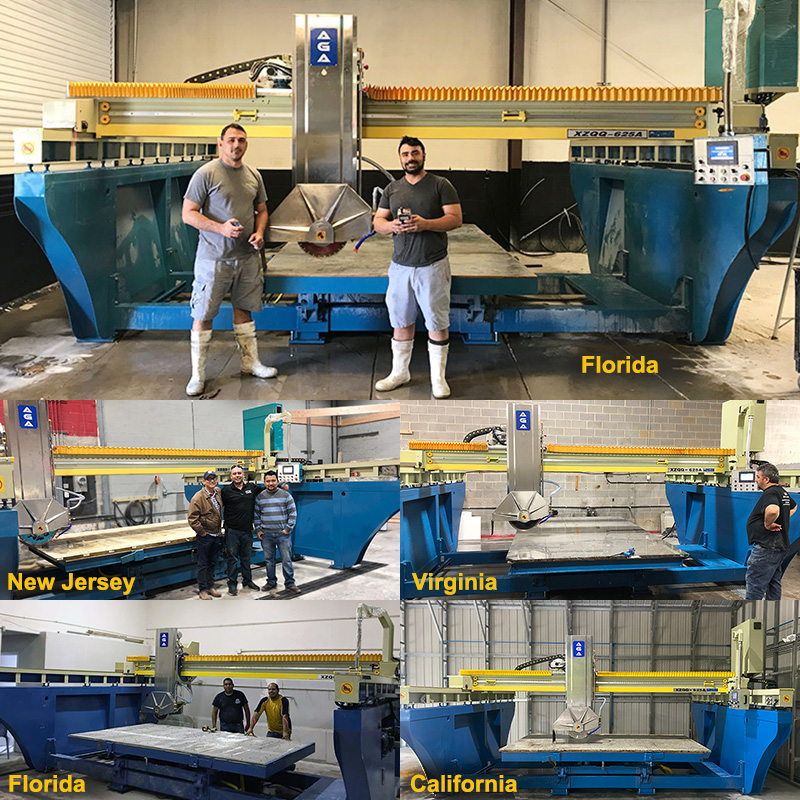

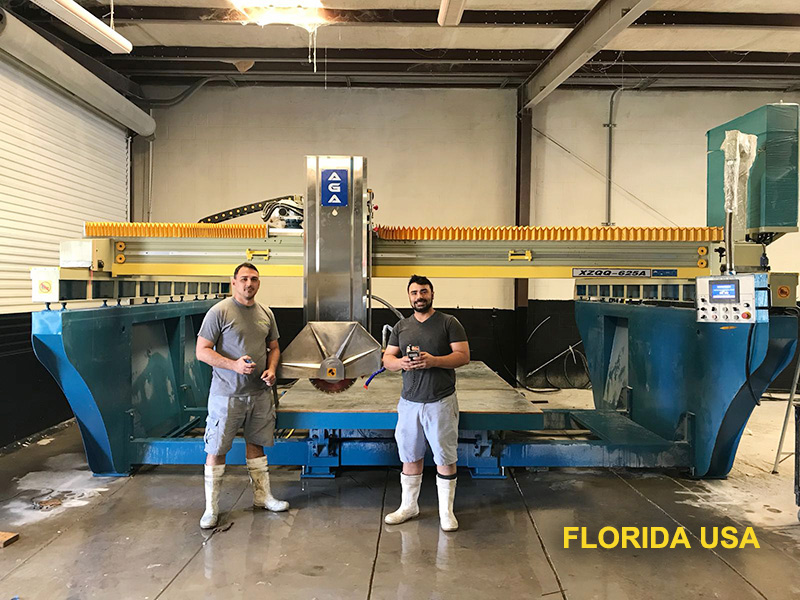

2. More than 100 machines in North America welcome to watch the working saws nearby.
3. Technicians in U.S. local providing set up, train, support and services.
4. Power specifications may differ in locations please advise where you are so can build the saw that suits you best.
5. Finance available if need please advise.
6. Please let us know where you are located for on time delivery.
