Stone Lathe Machine
Stone Lathe Machine

Stone Lathe Machine

Lathe machine to cut column balustrade banister
Product ID : SYF1800
Product Attributes :

Stone lathe machine for column pillar vases

Product Description

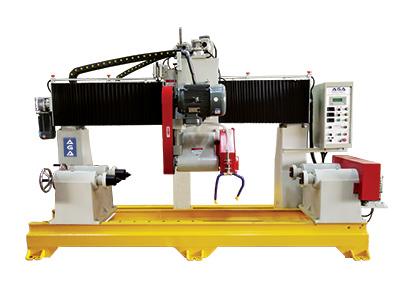

Stone lathe machine for cutting column pillar

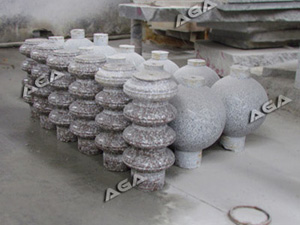

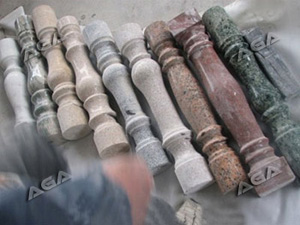

The lathe machine is applicable for making various kinds of solid rotary marble granite stones, such as baluster, column, guide bar, sysloidal baluster, pellet, stylobate, cap, etc.

It is made of strong cast iron and works automatically by micro computer.

Variable speed of X, Y, Z axes via 3 Inverters for speed and efficiency

A laser sensor tracks the template and guides the cutting blades to make 100% copy cut.

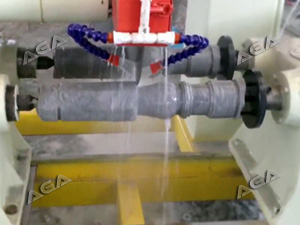

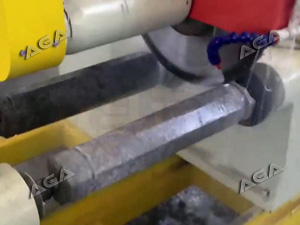

The cutter follows a template and makes exact shape copy cuts on the turning stones.

One blade cuts two stones at once very high efficiency.

The template is made of thin wooden board and easy to change for diversified patterns very flexible in use and easy to operate.

Custom made order available for cut length max. 3500 mm 11.5'.



CNC system capable of CAD file input available.



Advantage

-  Main structures made of strong cast iron for durability

-  PLC control automatic work with precise cuts

-  Variable speed of 3 axes via 3 Inverters for speed and efficiency

-  15 HP motor for heavy duty work



Stone lathe machine for column pillar

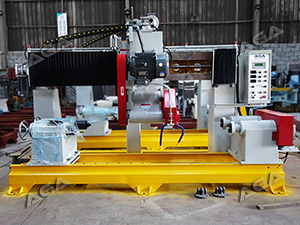

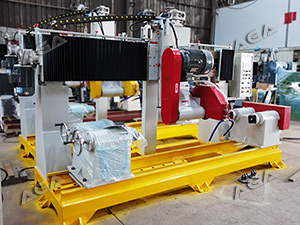

Grnaite lathe machine Marble lathe machine

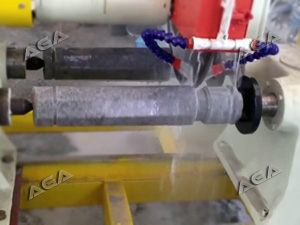

Granite pillar machine Granite column machine

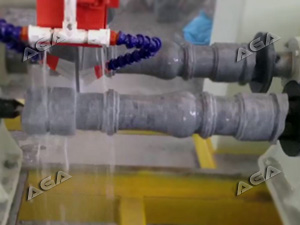

Granite balustrade machine Granite balustrade pedestal machine

granite vase machine stone banister railings machine

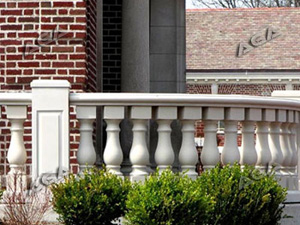

Stone column machine Marble railings machine
